2mp, IP67, Intrusion & line crossing & object removal & unattended baggage & face detection&Region Entrance/Left&Scene Change 8VCA
Descriptions:
2 x 1/2.8″CMOS; DarkFighterX, Color:0.001Lux/F1.5, B/W:0.0001Lux/F1.5, 1080P 25fps/30fps, H.265+/H.265/ H.264+/H.264/MJPEG,100m IR,120dB WDR, Triple-Stream, Optimized VCA, Support SD/SDXC Card up to 128GB, DC12V/PoE/Hi-PoE
Order Model Option
DS-2CD4C36FWD
DS-2CD4C36FWD-AP

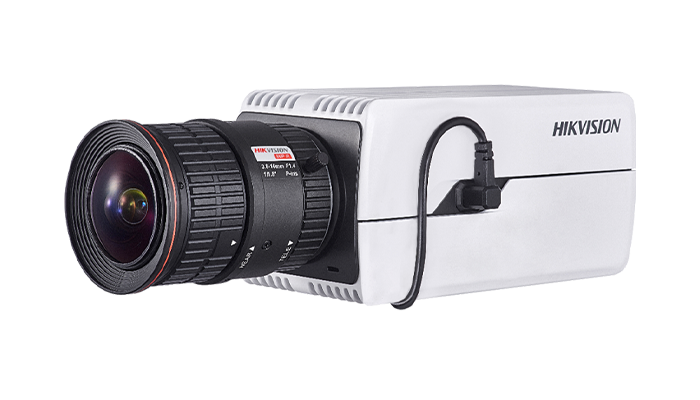

50 series Box Camera
DS-2CD5026G0
Basic Model :
DS-2CD4B36FWD
Smart Features :
2mp, indoor,Full smart features
Descriptions:
Darkfighter Ultra-low light technology, Color:0.002Lux/F1.2;BW:0.0002Lux/F1.2;1/1.8″CMOS;1080P up to 50fps/60fps；
H.265+/H.265/H.264+/H.264/MJPEG，140dB WDR;-AP:ABF;P-IRIS;,1*AudioOut,1*AudioIn;
2*AlarmIn,
2*AlarmOut;RS485;DC12Vout;5streams+5custom streams;
*do not include lens
DS-2CD5046G0
Basic Model :
DS-2CD5046G0
Smart Features :
4mp, indoor,Full smart features
Descriptions:
Darkfighter Ultra-low light technology, Color:0.002Lux/F1.2; BW:0.0002Lux/F1.2;1/1.8″CMOS; 4MP 25fps/30fps;,
H.265+/H.265/H.264+/H.264/MJPEG
140dB WDR; -AP:ABF;P-IRIS;,1*AudioOut,1*AudioIn;
2*AlarmIn,
2*AlarmOut;RS485;DC12Vout;5streams+5custom streams;
*do not include lens
DS-2CD5085G0
Basic Model :
DS-2CD5085G0
Smart Features :
8mp, indoor,Full smart features
Descriptions:
Color:0.007Lux/F1.2;BW:0.0007Lux/F1.2; 1/1.8″CMOS;
8MP 25fps/30fps;,H.265+/H.265/H.264+/H.264/MJPEG，
120dB WDR;-AP:ABF;P-IRIS;,1*AudioOut,1*AudioIn;
2*AlarmIn, 2*AlarmOut;RS485;DC12Vout;5streams+5custom streams;
*do not include lens
DS-2CD50C5G0
Basic Model :
DS-2CD4B36FWD
Smart Features :
12mp, indoor,Full smart features
Descriptions:
Color:0.009Lux/F1.2;BW:0.0009Lux/F1.2; 1/1.7″CMOS; 12MP 20fps/20fps;,H.265+/H.265/H.264+/H.264/MJPEG，
DWDR;-AP:ABF;P-IRIS;,1*AudioOut,1*AudioIn;
2*AlarmIn, 2*AlarmOut;RS485;DC12Vout;5streams+5custom streams;
*do not include lens

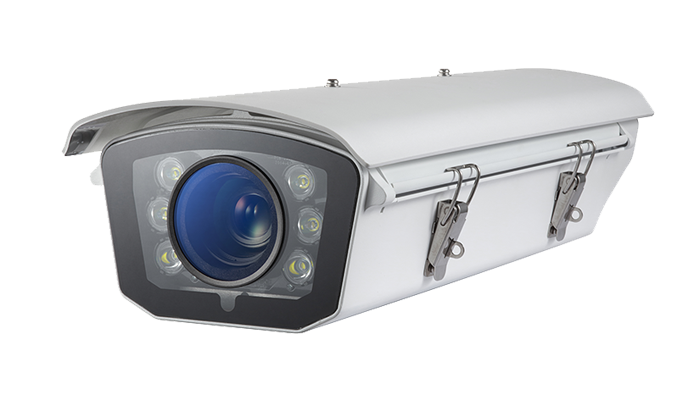

50 series Box Camera(Outdoor)
DS-2CD5026G0/E-I(H)
Basic Model :
DS-2CD5026G0/E-I(H)
Smart Features :
2mp, outdoor,Full smart features
Descriptions:
Darkfighter Ultra-low light technology, Color:0.002Lux/F1.2;BW:0.0002Lux/F1.2;1/1.8″CMOS;1080P up to 50fps/60fps；
H.265+/H.265/H.264+/H.264/MJPEG，140dB WDR;-AP:ABF;P-IRIS;,1*AudioOut,1*AudioIn;
2*AlarmIn, 2*AlarmOut;RS485;5streams+5custom streams;
Bracket with build-in wiring;
Fan & heater;
Cardan joint or goose neck bracket optional;
Bracket optional;
Junction box optional(suitable for POE convertor, Fiber convertor);
IP 66, IK 10 including Lens;

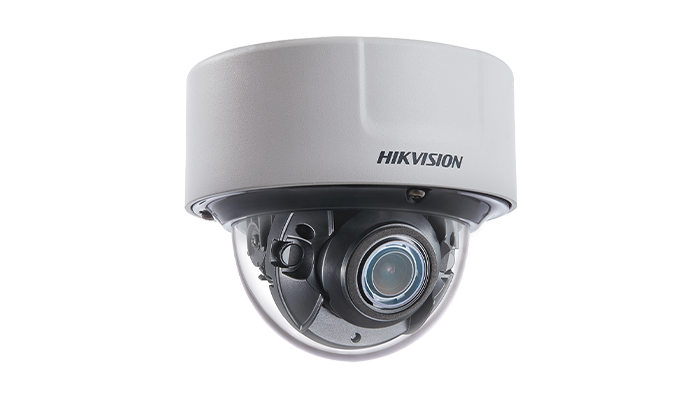

51 series Indoor IR Dome
DS-2CD5126G0
Basic Model :
DS-2CD5126G0
Smart Features :
2mp, indoor IK10, Full smart features
Descriptions:
Darkfighter Ultra-low light technology, H.265+/H.265/H.264+/H.264/MJPEG，Color:0.002Lux/F1.2, BW:0.0002Lux/F1.2;
1/1.8″CMOS;1080P , up to 50fps/60fps;140dB WDR;
1*AudioOut,1*AudioIn;
1*AlarmIn, 1*AlarmOut;RS485;DC12Vout;5streams+5 custom streams;IK10;
Darkfighter Ultra-low light technology, 1/1.8″ Progressive Scan CMOS, ICR, Color:0.002Lux/F1.2, B/W:0.0002Lux/F1.2, slow shutter,
1920 x 1080, up to 50fps/60fps:
H.265+/H.265/H.264+/H.264/MJPEG，
140dB WDR;
2*AlarmIn, 2*AlarmOut;
5streams+5custom streams;
(-H:build-in Heater, -Y anti-corrosion, /UH start up temperature：-60℃ );
IP67;IK10;

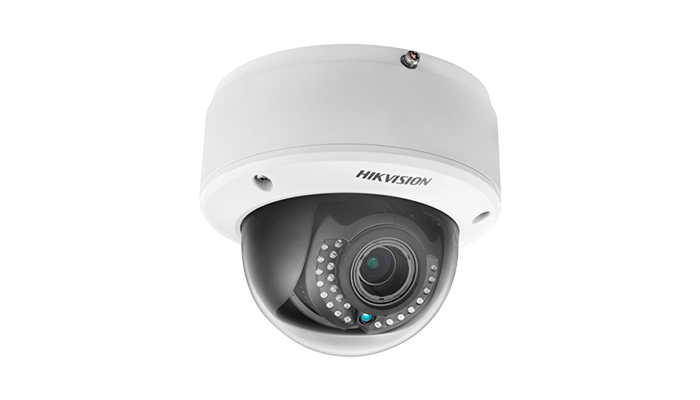

41 series Indoor IR Dome
DS-2CD41C5F
Basic Model :
DS-2CD41C5F
Smart Features :
12mp,Indoor,Full Smart Features
Descriptions:
1/1.7″ Progressive Scan CMOS, ICR, 0lux with IR, slow shutter, 4000×3000: 15fps, 4096×2160: 22fps, 2.8~12mm/F1.4 Motorized VF lens, DWDR, H.264/MJPEG, Triple-Stream, Support SD/SDXC Card up to 128GB, Audio & Alarm I/O, DC12V/PoE,
Order Model Option
DS-2CD41C5F-IZ

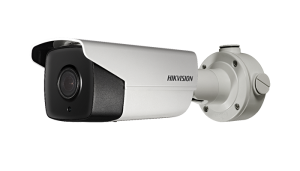

4A series Outdoor EXIR Array Bullet
DS-2CD4A24FWD
Basic Model :
DS-2CD4A24FWD
Smart Features :
2mp, IP67, Full smart features
Descriptions:
1/2.8″ Progressive Scan CMOS, ICR, 0 lux with IR, Slow shutter, 1920×1080: 50/60fps, 20x optical zoom (4.7~94mm/F1.4) lens with Smart Focus, H.264/MJPEG/MPEG4, Triple-Stream, Support SD/SDXC Card up to 128GB, IP67, DC12V/PoE, up to 120m IR range, Bracket & junction box included,
-S: Audio/Alarm IO
-H: Built-in Heater
Order Model Option
DS-2CD4A24FWD-IZ
DS-2CD4A24FWD-IZS
DS-2CD4A24FWD-IZH
DS-2CD4A24FWD-IZHS
DS-2CD4A35FWD
Basic Model :
DS-2CD4A35FWD
Smart Features :
3mp, IP67, Full smart features
Descriptions:
1/2.8″ Progressive Scan CMOS, ICR, 0 lux with IR, Slow shutter, 2048×1536: 45fps, 1920×1080: 50/60fps, 2.8~12mm/F1.4 Motorized VF lens with Smart Focus, 8~32mm Motorized VF lens optional, H.264/MJPEG, Triple-Stream, Support SD/SDXC Card up to 128GB, IP67, DC12V/PoE, Bracket & junction box included,
-S: Audio/Alarm IO
-H: Built-in Heater
Order Model Option
DS-2CD4A35FWD-IZ
DS-2CD4A35FWD-IZS
DS-2CD4A35FWD-IZH
DS-2CD4A35FWD-IZHS
DS-2CD4AC5F
Basic Model :
DS-2CD4AC5F
Smart Features :
12mp, IP67, Full smart features
Descriptions:
1/1.7″ Progressive Scan CMOS, ICR, 0 lux with IR, Slow shutter, 4000×3000: 15fps, 4096×2160: 22fps, 2.8~12mm/F1.4 Motorized VF lens with Smart Focus, H.264/MJPEG, Triple-Stream, Support SD/SDXC Card up to 128GB, IP67, AC24V/PoE, Bracket & junction box included,
-S: Audio/Alarm IO
-H: Built-in Heater
Order Model Option
DS-2CD4AC5F-IZ
DS-2CD4AC5F-IZS
DS-2CD4AC5F-IZH
DS-2CD4AC5F-IZHS

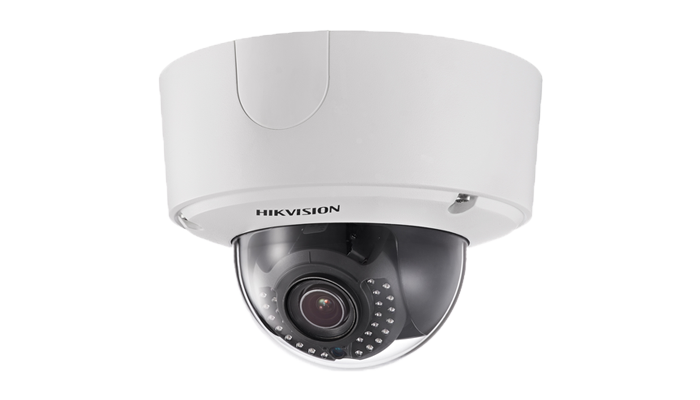

45 series Outdoor IR Dome Camera
DS-2CD4535FWD
Basic Model :
DS-2CD4535FWD
Smart Features :
3mp, IP66, Full smart features
Descriptions:
1/2.8″ Progressive Scan CMOS, ICR, 0 lux with IR, Slow shutter, 2048×1536: 45fps, 1920×1080: 50/60fps, 2.8~12mm/F1.4 Motorized VF lens with Smart Focus, 8~32mm Motorized VF lens optional, H.264/MJPEG, Triple-Stream, Support SD/SDXC Card up to 128GB, IP66, DC12V/AC24V/PoE, Audio/Alarm IO, Vandal-proof,
-H: Built-in Heater & Fan
Order Model Option
DS-2CD4535FWD-IZ
DS-2CD4535FWD-IZH
DS-2CD45C5F
Basic Model :
DS-2CD45C5F
Smart Features :
12mp, IP66, Full smart features
Descriptions:
1/1.7″ Progressive Scan CMOS, ICR, 0 lux with IR, Slow shutter, 400×3000: 15fps, 4096×2160: 22fps, 2.8~12mm/F1.4 Motorized VF lens with Smart Focus, H.264/MJPEG, Triple-Stream, Support SD/SDXC Card up to 128GB, Up to 40m IR, IP66, DC12V/AC24V/PoE, Audio/Alarm IO, Vandal-proof,
-H: Built-in Heater & Fan
Order Model Option
DS-2CD45C5F-IZ
DS-2CD45C5F-IZH

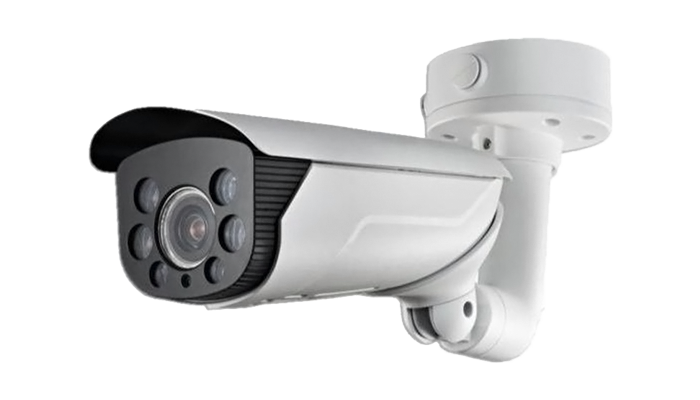

46 series Outdoor Vandal-proof IR Array Bullet Camera
DS-2CD4635FWD
Basic Model :
DS-2CD4635FWD
Smart Features :
3mp, IP66, IK10, Full smart features
Descriptions:
1/2.8″ Progressive Scan CMOS, ICR, 0 lux with IR, Slow shutter, 2048×1536: 45fps, 1920×1080: 50/60fps, 2.8~12mm/F1.4 Motorized VF lens with Smart Focus, 8~32mm Motorized VF lens optional, H.264/MJPEG, Triple-Stream, Support SD/SDXC Card up to 128GB, IP66, Vandal-proof, AC24V/PoE, Bracket & junction box included,
-S: Audio/Alarm IO
-H: Built-in Heater
2.8~12mm lens: up to 70m IR
8~32mm lens: up to 150m IR
